Adaptér na potrubie Grundfos 50 mm DN 50 PN 10 - 96608516

Overview

The Adapter A50-40 DN 50 PN 10 is a prefabricated component designed specifically for connecting pumps to piping systems. Manufactured from durable carbon steel with a high-quality NCS 9000 2K black painted surface finish, this adapter offers excellent mechanical strength and corrosion resistance, suitable for a variety of industrial applications.

Function and Features

• Enables secure and reliable connection between pumps and pipelines.
• Constructed of carbon steel for enhanced durability and longevity.
• Surface finished with NCS 9000 2K black paint for additional protection against corrosion and wear.
• Designed according to DIN standards, ensuring compatibility and high-quality engineering.
• Featuring a nominal diameter (DN) of 50 and a nominal pressure rating of PN 10, suitable for medium pressure systems.

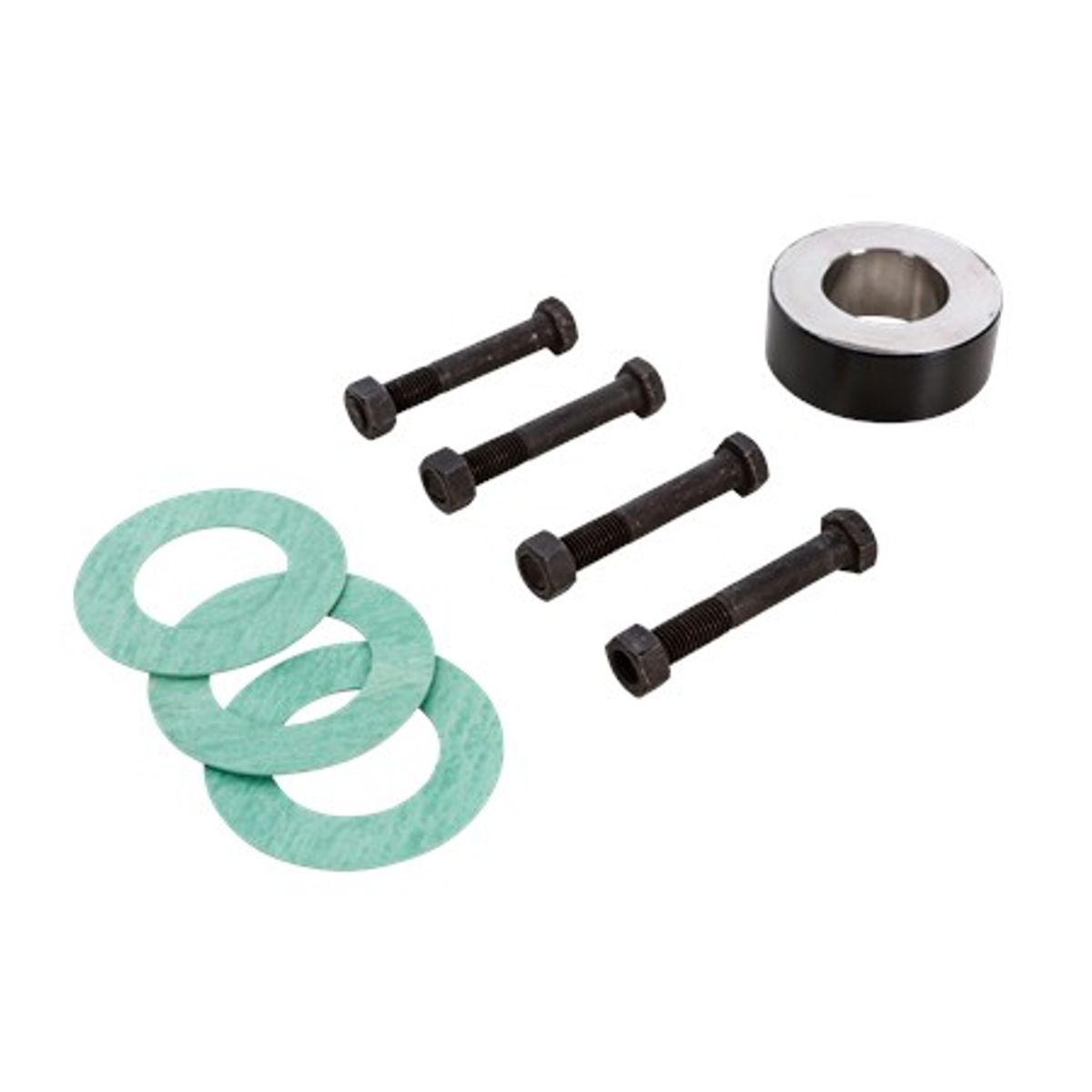

• Includes three sealing gaskets and four screws for solid and leak-proof installation.

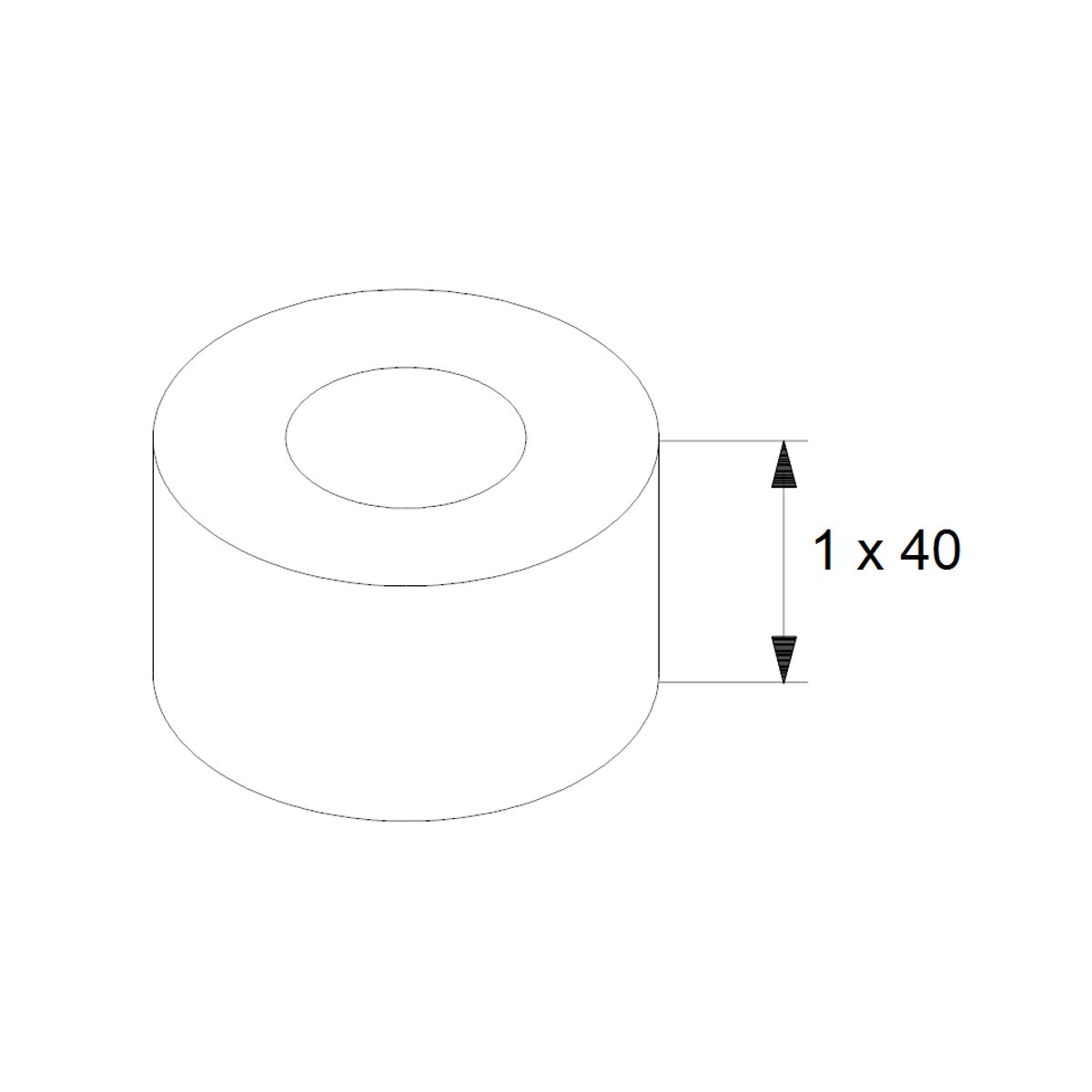

• Compact extension length of 40 mm for easy integration into existing piping setups.

Installation

The adapter comes complete with all necessary seals and screws, simplifying the installation process. It is designed to comply with DIN EN 1092-1 standards to ensure an optimal fit and secure joint. Proper tightening of the four included screws, along with positioning of the three sealing gaskets, will guarantee a durable and leak-free connection.
